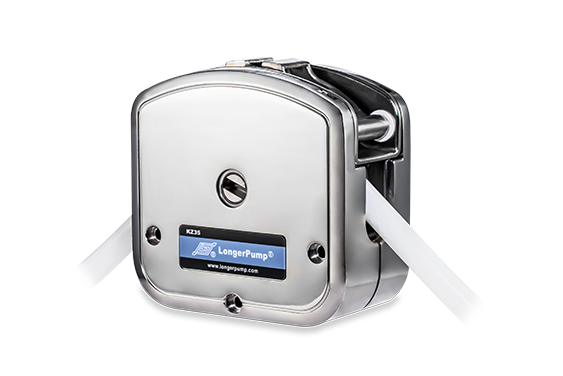

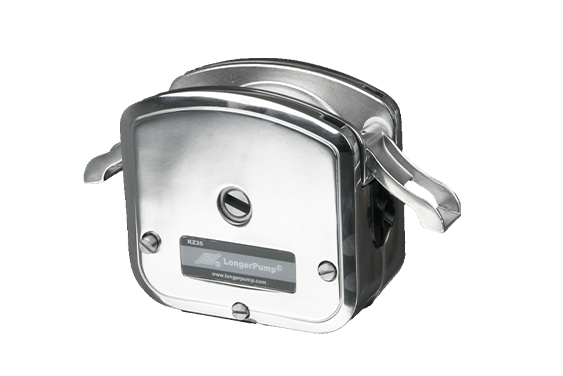

Adopt stainless steel material for industrial applications.
Key parts are made of 304 stainless steel material, which meets GMP standards and can be used in fields with hygiene requirements such as pharmaceuticals and food.
Nice appearance and easy clean with polished surface.
Continuous tubing and tubing fitting are available for different applications.
It has features of large flow rate, stable performance and corrosion resistance.
Stackable pump head to realize 2 channels.
The max flow rate is 11000mL/min.
| Parameters | KZ35 |
| Max. flow rate(Single Channel) | 11000mL/min |
| Speed | ≤600rpm |
| Tubing options | 73#,82# |
| Number of channels | 1 |
| Number of rollers | 3 |
| Housing material | Stainless Steel |
| Roller material | Stainless Steel |
| Stackable | Yes |
| Weight | 3.7Kg |
Technical Specifications
Model | Shaft | Produc Code | Rolle Number | Rolle Material | Housin Material | Tubing | Speed (rpm) | Max. Flow Rat (mL/min) | Weight (kg) |
KZ35-13-A | Long | 05.01.26A | 3 | Stainless Steel | Stainless Steel | 26#,73#,82# | ≤600rpm | 11000 | 3.7 |
KZ35-13-B | Short | 05.01.26B | 26#,73#,82# | ≤600rpm | 11000 | ||||
KZ35-13-C | Long | 05.01.74C | 26#,73#,82# | ≤600rpm | 11000 | ||||
82A#, 184# | ≤300rpm | 9000 | |||||||
KZ35-13-D | Short | 05.01.74D | 26#,73#,82# | ≤600rpm | 11000 | ||||
82A#, 184# | ≤300rpm | 9000 |

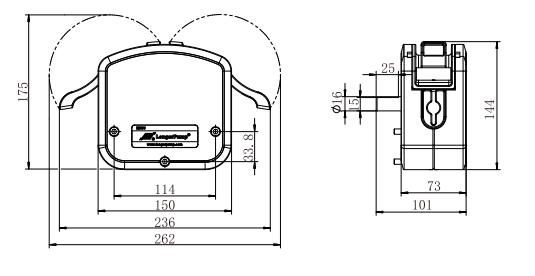

Dimensions

Flow Curve
