Compact size and structure
Speed control 20,000:1 or 40,000:1
Continuous and timer modes for different applications
Keypad and footswitch control for local operation
Low-noise design
Compatible with various peristaltic pump heads with a wide flow range
Parameters | GM200-2B/GM400-2B |
Max Flow Rate (Single Channel) | 1520mL/min |
Speed Range | 0-400rpm |
Speed Resolution | 0.01rpm (speed<10rpm);0.1rpm (10rpm≤speed<100rpm);1rpm(100rpm≤speed≤max) |
Display | LCD screen for pump speed,running direction,time,start/stop status and work mode |
Work Mode | Continuous or timer mode |
Control Mode | Keypad or footswitch control |
Calibration | No |
External Control | No |
Communication Control | No |
Dimensions(L x W x H) | 175x115x135mm (pump drive only) |
Power Supply | AC100-240V,50Hz-60Hz |
Operating Temperature | 0℃-40℃ |
Relative Humidity | <80% |
IP Rating | IP31 |
Weight | 1.7kg (pump drive only) |
Technical Specifications
GM200-2B | GM400-2B | |
Pump speed | 0-200rpm | 0-400rpm |
Speed resolution | 0.01 rpm (speed<10rpm) 0.1rpm (10rpm≤speed<100rpm) 1rpm(100rpm≤speed≤max) | |
Display | LCD screen for pump speed, running direction, time, start/stop status and work mode | |
Running direction | Clockwise or counter-clockwise, can be toggled during running | |
Work mode | Continuous or timer mode | |
Control mode | Keypad or footswitch control | |
Keypad control | Set the parameters and control the pump via keypad: start/stop, running direction, prime function, speed adjustment, work mode, timer | |
Footswitch control | Control the start/stop via a footswitch | |
Timer function | In time mode, the pump runs and stops based on the set timer duration. Timer range: 0.1s to 999h. | |
Runtime counter | In continuous mode, the pump automatically records the runtime and can accumulate the multiple operation periods (reset upon power-up). Timing range: 0.1s-999h | |
Keypad lock | To prevent misoperation | |
Pump status when powered up | Stop | |
Parameter retention | Run and system parameters are saved after power loss | |
Prime | Fast filling or emptying at full speed | |
Dimensions (L*W*H) | 175x115x135mm (pump drive only) | |
Power supply for adapter | AC100-240V, 50Hz-60Hz | |
Power supply for pump | DC24V/15W | DC24V/30W |
Working condition | Environment temperature:0℃-40℃, relative humidity:<80% | |
IP rating | IP31 | |
Weight | 1.7kg (pump drive only) |
Compatible Pump Head and Tubing
Pump Drive Model | Pump Head Model | Speed | Roller Number | Channel Number | Pump Head Material | Tubing | Max Flow Rate Reference (mL/min) |

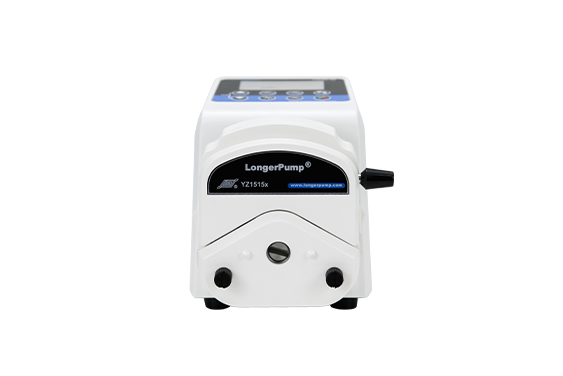

GM200-2B (Product Code:05.02.05A) | YZ1515x | ≤200rpm | 3 | 1 | Housing: PESU or PPS Roller: Stainless steel | 13#,14#,19#,16#,25#,17#,18# | 760 |
YZ2515x | 3 | 1 | 15#,24# | 540 | |||

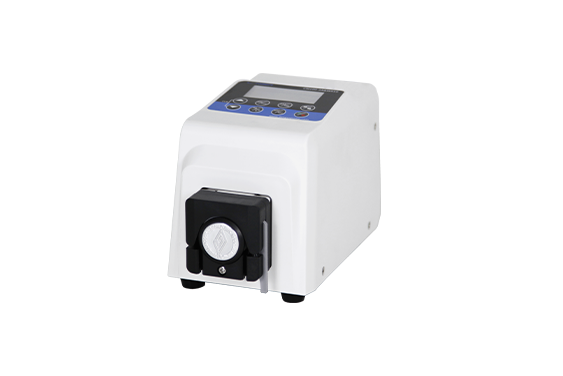

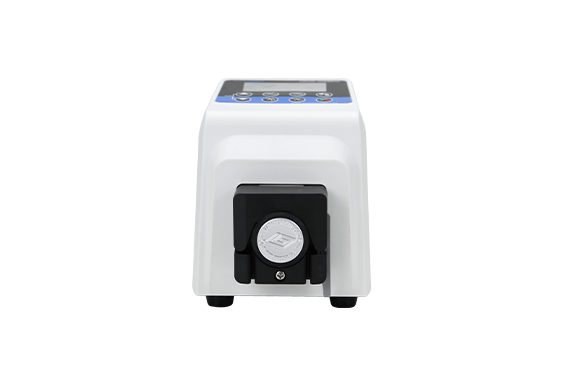

DG-1 (6 rollers) | ≤100rpm | 6 | 1 | Cartridge:POM or PVDF Roller: Stainless steel | ID≤3.17mm, W.T.: 0.8-1mm | 48(Single Channel) | |
DG-1 (10 rollers) | 10 | 1 | 32(Single Channel) | ||||
DG-2 (6 rollers) | 6 | 2 | 48(Single Channel) | ||||
DG-2 (10 rollers) | 10 | 2 | 32(Single Channel) | ||||
CM400-2B (Product Code:05.02.05B) | YZ1515x | ≤400rpm | 3 | 1 | Housing: PESU or PPS Roller: Stainless steel | 13#,14#,19#,16#,25#,17#,18# | 1520 |
YZ2515x | 3 | 1 | 15#,24# | 1120 |
Dimensions
Flow Curve
