Dispensing peristaltic pump BT100-1F is mainly used in laboratory.
The pump could complete the dispensing function at desired volume. The flow rate calibration and dispensing calibration ensure the high accuracy and precision.
The back suction function could prevent the liquid leaking. The pump works in reverse for a given time when the pump stops running at dispensing mode. Easy to use and more convenient.
Acceptable pump heads are YZ1515x, YZII15, YZ2515x, YZII25, DG-1/2/4 with 6 rollers, DG-1/2/4 with 10 rollers, DMD15 and DG15 series.
The pump delivers flow rate from 0.02 to 500ml/min.
The LCD could display the parameters and running state. The pump could be controlled through control panel, external control interface and RS485 communication interface.
Store the running parameter automatically.
CE certification.
Parameters | BT100-1F |
Max. flow rate(Single Channel) | 500ml/min |
Pump speed | 0.1 rpm - 100 rpm,CW/CCW |
Speed resolution | 0.1rpm |
Display | LCD for speed,flow rate,volume and other parameters |
Work mode | Continuous mode; Multi-dispensing mode |
Control mode | Keypad control; Footswitch control; External control; Communication control |
Calibration function | Flow rate calibration; Volume calibration |
External control | Control function:start/stop,running direction,speed; Pump status output: run/stop,running direction,speed |
Communication control | RS485 |
Dimensions (L x W x H) | 285×207×180(mm) |
Power supply | AC 90V-260V/40W,50/60Hz |
Operating temperature | 0℃-40℃ |
Relative humidity | relative humidity<80% |
IP rating | IP31 |
Weight | 3.8kg |
Technical Specifications
Speed | 0.1rpm-100rpm,CW/CCW |
Speed resolution | 0.1rpm |
Control mode | Control panel, external signal control and communication control are available |
Display | LCD for running status |
Work mode | Flowrate mode and dispensing mode |
Flowrate calibration | Improve flow rate accuracy |
Dispensing volume | 0.01mL-9.99L |
Dispensing calibration | Calibrate dispensing volume to improve accuracy |
Copy number | 1 to 9999, “0”means unlimited cycle |
Pause time | 0.1s-99.9min, resolution is 0.1s |
Back suction time | 0s-99.9s, resolution is 0.1s |
External control | Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional) |
Speed output | 10Hz-10kHz corresponding to 0.1-100rpm |
Start/stop output | OC gate signal |
Direction output | OC gate signal |
Communication interface | RS485 |
Power-off memory | Return to previous status when powered on |
Prime | For fast filling and emptying at full speed |
Dimension (L×W×H) | 285×207×180(mm) |
Power supply | AC 90V-260V/40W |
Operating temperature | 0℃-40℃ |
Relative humidity | <80% |
IP rating | IP31 |
Weight | 3.8kg |
Compatible Pump Head and Tubing
Model (Product code, Language) | Pump Head | Tubing | Max. Flow Rate(mL/min) | Weight (kg) |
BT100-1F (05.02.13A, Chinese) BT100-1F-B (05.02.13B, English) | YZ1515x, YZII15 | 13# 14# 19# 16# 25# 17# 18# | 380 | 4.2 |
YZ2515x | 15# 24# | 270 | ||
YZII25 | 15# 24# 35# 36# | 500 | ||
DG-(1、2、4) 6 Rollers | Id≤3.17 (mm) Wall Thickness 0.8-1(mm) | 48 | 4-4.3 | |
DG-(1、2、4) 10 Rollers | 32 | |||
DMD15-13-B, DMD15-13-D | 13# 14# 19# 16# 25# | 350 | 4.2 | |
DG15-24 | 16# 25# 17# | 300(Single Channel) | 4.6 | |
DG15-28 | 13# 14# Id ≤3.17 (mm) Wall Thickness 1 (mm) | 75(Single Channel) | 4.5 |

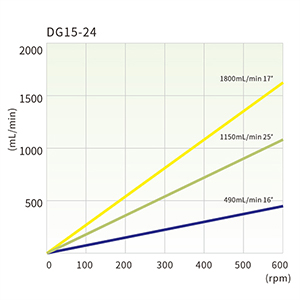

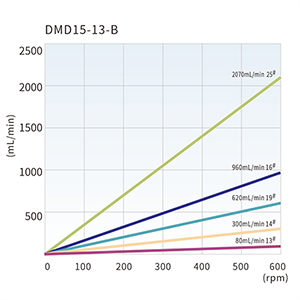

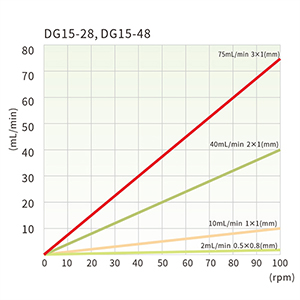

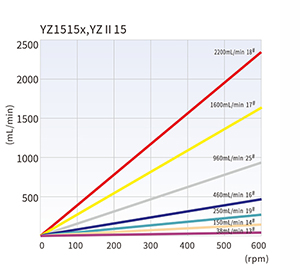

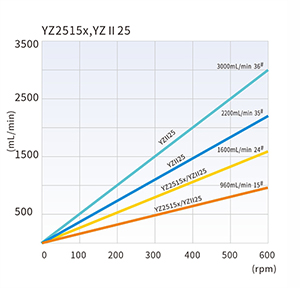

Flow Curve
