Speed resolution

1rpm

Speed accuracy

≤±1%

Control mode

Membrane keypad, external signal control and

communication control are available

Display

3-digit LED display for current speed, 4 LED indicators

for operating status

External control

Start/stop, direction and speed control (4-20mA, 0.5-5V,

1-10V, 1-10kHz external control module optional)

Communication interface

RS485

Power-off memory

Return to previous status when powered on

Prime

For fast filling and emptying at full speed

Dimension (L×W×H)

273x190x272(mm)

Power supply

AC 220V±20%/200W or AC 110V±20%/200W

Operating temperature

0℃~40℃

Relative humidity

<90%

IP rating

IP55

Weight

7.3kg

WT600-3J-A(05.02.64A, AC220V, 0.5-5V)

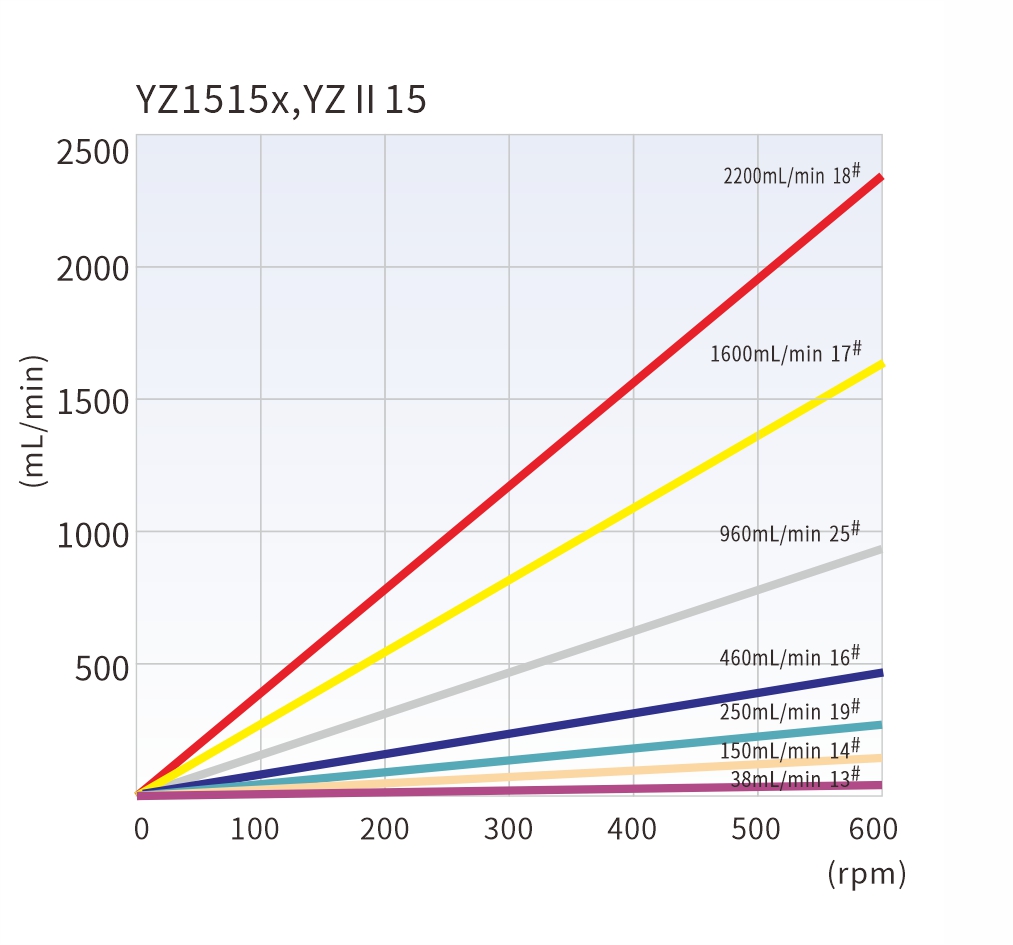

(1、2、3、4) × YZ1515x

13^#14^#19^#16^#
    25^#17^#18^#

4-2200(Single Channel)

7.7-8.9

WT600-3J-B(05.02.64B, AC220V, 1-10V)

WT600-3J-C(05.02.64C, AC220V, 4-20mA)

(1、2、3、4) × YZII15

WT600-3J-D(05.02.64D, AC220V, 1kHz-10kHz)

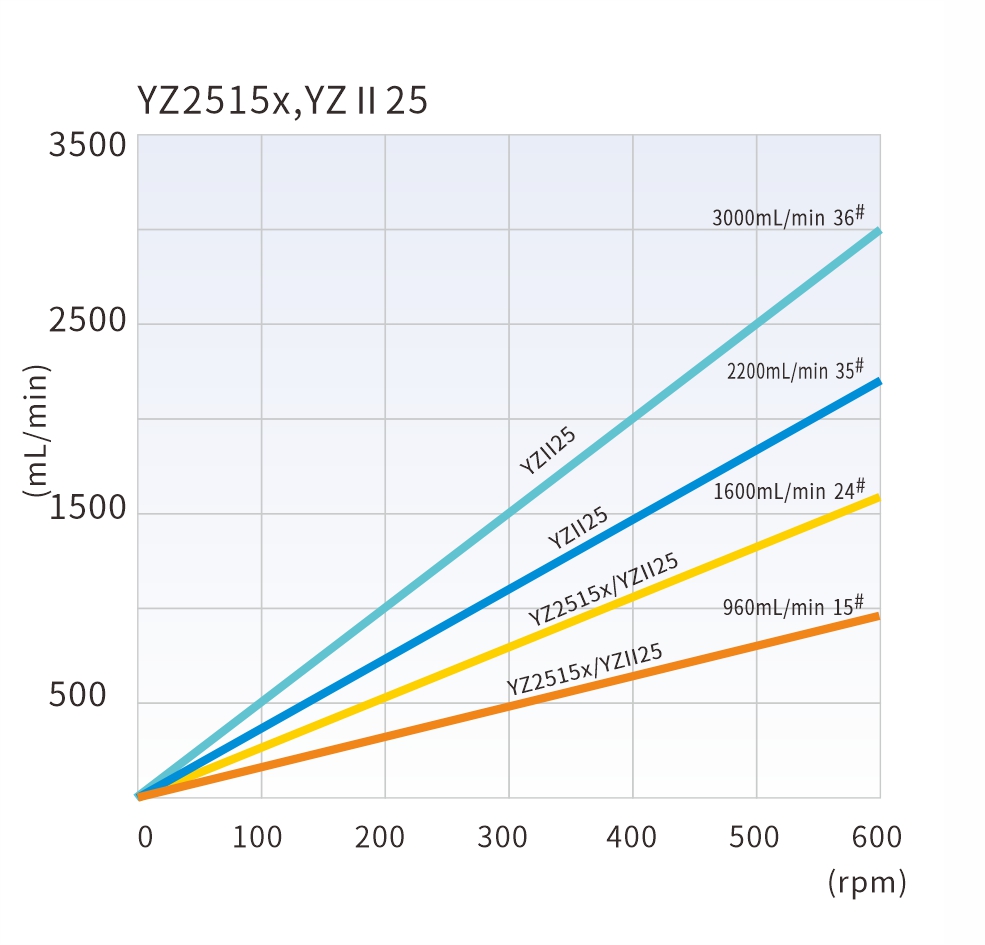

(1、2、3、4) × YZ2515x

15^#24^#

100-1600(Single Channel)

WT600-3J-E(05.02.64E, AC220V, RS485)

WT600-3J-F(05.02.64F, AC110V, 0.5-5V)

(1、2) × YZII25

15^#24^#35^#36^#

100-3000(Single Channel)

7.7-8.1

WT600-3J-G(05.02.64G, AC110V, 1-10V)

WT600-3J-H(05.02.64H, AC110V, 4-20mA)

DG15-24

16^#25^#17^#

50-1800(Single Channel)

8.1

WT600-3J-J(05.02.64J, AC110V, 1kHz-10kHz)

(1、2)  ×  KZ25

15^#24^#35^#36^#

200-6000(Single Channel)

8.1-8.9

WT600-3J-K(05.02.64K, AC110V, RS485)
