It is mainly used in industrial production
JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
JL350-2J peristaltic pump is ideal for high flow rates fluid transfer and mainly used in industrial production application. The pump is driven by AC servo motor with speed adjusting through frequency converter.
Product Enquiry
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
  • JL350-2J High IP Rating, High-Flow Range Peristaltic Pump
Product Introduction Parameter Details Data Download
Product Features

JL350-2J peristaltic pump is ideal for high flow rates fluid transfer and mainly used in industrial production application.

The pump is driven by AC servo motor with speed adjusting through frequency converter. It is reliable and easy to operate.

The pump delivers flow rates from 1.3L/min to 35mL/min.

Pump head operation is visible for running status with rpm, direction and start/stop through transparent front cover.

The pump could be controlled through the frequency converter and external control interface.

Not suitable for outdoor.

Technical Parameters
Parameters JL350-2J
Max. flow rate(Single Channel) 35L/min
Pump speed 30-350rpm，CW/CCW
Speed resolution 0.6rpm
Housing material Cast iron

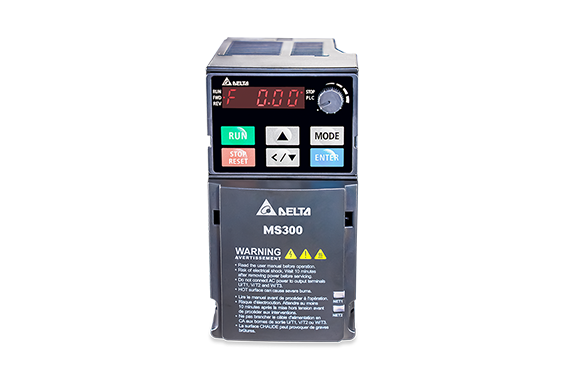

Display LED on frequency converter for parameters
Work mode Continuous mode
Control mode Keypad control; External control; Communication control (with the frequency converter)
Calibration function No
External control Control function: start/stop，running direction，speed
Communication control RS485，Modbus RTU
Dimensions (L x W x H) 417×401×321mm
Power supply AC 220V ±20%/400W，50/60Hz
Operating temperature 0℃-40℃
Relative humidity relative humidity＜80%
IP rating IP55(excluding frequency converter)
Weight 32Kg
Application Scenarios

Technical Specifications


Speed

30rpm-350rpm, CW/CCW

Speed resolution

0.6rpm

Control mode

keypad control or external signal control

Display

LCD for running information

Speed control

0-5V, 0-10V, 4-20mA linear control

Start/stop signal input

Switch signal control

Direction signal input

Switch signal control

Communication function

RS485 interface, Modbus RTU protocol

Memory function

Storing the running parameter automatically

Dimension (L×W×H)

417×401×321 (mm)

Power supply

AC 220V±10%/400W

Operating temperature

0℃~40℃

Relative humidity

<80%

IP rating

IP55（excluding frequency converter）

Weight

32kg


Compatible Pump Heads and Tubing


Model

Product Code

Pump Head

Tubing

Flow Rate

(L/min)

Weight(kg)

JL350-2J

05.02.34A

KZ48

88#

1.3-15

32

92#

3-35


Dimensions
