Used in medical dialysis application.
DC brushless motor provides stable performance and low noisy.
It is suitable for customer's equipment and instrument with small size and compact structure.
BLDCDRV-B1 motor controller is optional. Or customers can design controller by themselves to control working process.
Parameters | MTH18-12 |
Motor type | DC brushless motor |
Control circuit board | No |
Max. flow rate (Single Channel) | 5ml/min-300ml/min |
Pump head model | No |
Pump speed | 0-70rpm |
Control mode | No |
Control feature | No |
Dimensions (L x W x H) | 166×80×93mm |
Installation method | No |
Power supply | 24V DC |
Operating temperature | 0℃-40℃ |
Relative humidity | <80% |
Weight | No |
Technical Specifications
Motor Specification | |
Voltage rating | 24VDC |
Current rating | 3.2A |
Pole-pairs numbers | 4 |
Speed | 4000 rpm |
Reduction ratio | 1:19 |
Pump Sepcification | |
Speed Range | 0-70 rpm, CW/CCW |
Tubing | OD≤10mm, Wall thickness 1.75±0.2mm |
Flow Rate | 5-300mL/min (6.5mm ID × 10mm OD) |
2-165mL/min (4.6mm ID × 8.4mm OD) | |
Dimension | 166×80×93mm |
Relative Humidity | <80% |
Operating temperature | 0℃~40℃ |
Weight | 1.23kg |
Product Model | Number of Rollers | Roller Material | Housing and Cover Material | Speed Range | Tubing ID×OD(mm) | Flow Rate (mL/min) |
MTH18-12 | 2 | 304SS | Housing; Zinc Alloy/Chrome Coating; Cover: PC | ≤70 rpm | 6.5×10 | 5~300 |
4.6×8.4 | 2~165 |

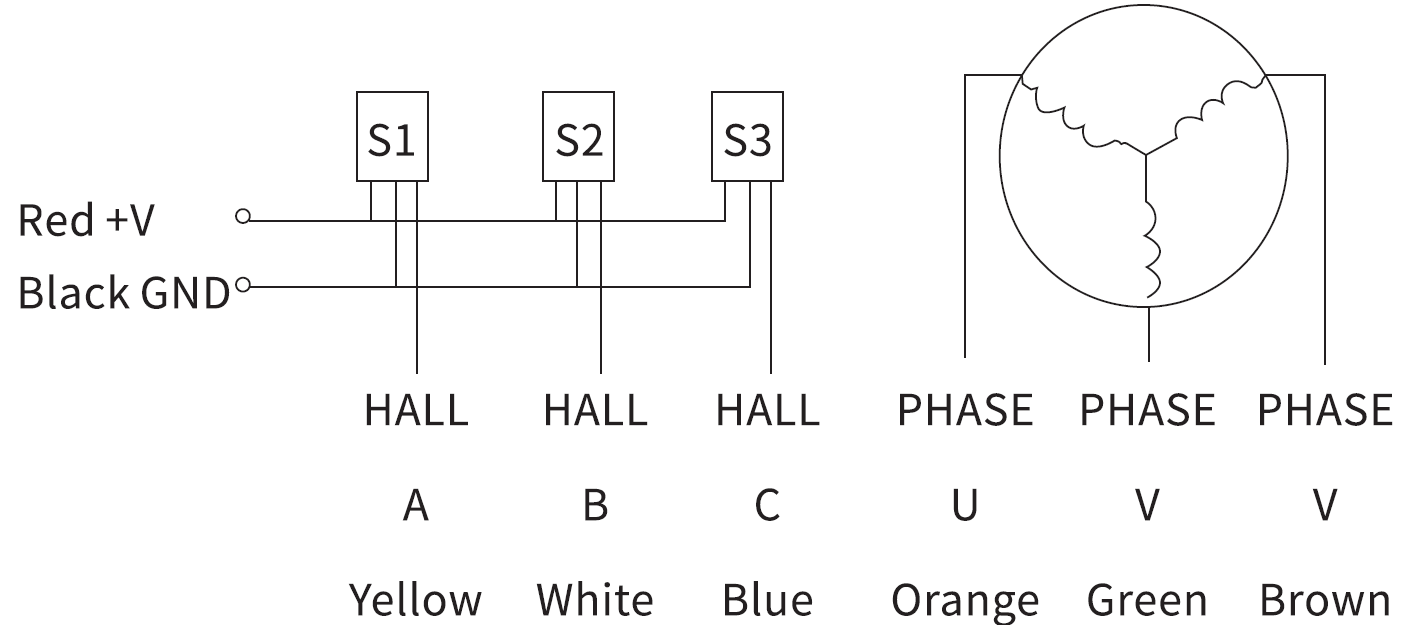

Motor Wiring
Dimension
