dLSP 520 Pro Digital Lab Syringe Pump_Longer Pump

Parameters	dLSP 510 Pro
Product Type	Split-Type Configuration
Number of Syringes	2
Compatible Syringe Sizes	0.5 µL–30 mL
Reference Flow Range	0.0003 nL/min–35.897 mL/min
Display	7-inch color LCD display
Operating Mode	Infusion; withdrawal; infusion-then-withdrawal; withdrawal-then-infusion; automatic circulation
Programmable Function	Available (via dedicated PC software programming)
Control Method	Touchscreen control; dedicated PC software control; cloud-based remote control; dedicated Android APP control; contact signal start/stop (foot switch); RS485 communication control
Maximum Stroke Length	108 mm
Stroke Resolution	0.015625 µm/micro step
Linear Speed Range	0.04 µm/min–86.4 mm/min
Stroke Control Accuracy	±0.35%
Maximum Linear Thrust	Rated thrust: 40 lbs/18 kg; adjustable thrust
External Control Function	Control: external event triggering; Status output: start/stop; direction; alarm
Communication/Interface Control	RS485
Dimensions	Main unit: 260 mm × 185 mm × 180 mm; Controller: 190 mm × 123 mm × 33 mm
Power Supply	AC 100 V–240 V/30 W; 50/60 Hz
Operating Temperature	5 °C–40 °C
Relative Humidity	<85%
Weight	Actuator unit: approx. 3.5 kg; Controller unit: approx. 0.4 kg

Parameters

dLSP 510 Pro

Product Type

Split-Type Configuration

Number of Syringes

Compatible Syringe Sizes

0.5 µL–30 mL

Reference Flow Range

0.0003 nL/min–35.897 mL/min

Display

7-inch color LCD display

Operating Mode

Infusion; withdrawal; infusion-then-withdrawal; withdrawal-then-infusion; automatic circulation

Programmable Function

Available (via dedicated PC software programming)

Control Method

Touchscreen control; dedicated PC software control; cloud-based remote control; dedicated Android APP control; contact signal start/stop (foot switch); RS485 communication control

Maximum Stroke Length

108 mm

Stroke Resolution

0.015625 µm/micro step

Linear Speed Range

0.04 µm/min–86.4 mm/min

Stroke Control Accuracy

±0.35%

Maximum Linear Thrust

Rated thrust: 40 lbs/18 kg; adjustable thrust

External Control Function

Control: external event triggering; Status output: start/stop; direction; alarm

Communication/Interface Control

RS485

Dimensions

Main unit: 260 mm × 185 mm × 180 mm; Controller: 190 mm × 123 mm × 33 mm

Power Supply

AC 100 V–240 V/30 W; 50/60 Hz

Operating Temperature

5 °C–40 °C

Relative Humidity

<85%

Weight

Actuator unit: approx. 3.5 kg; Controller unit: approx. 0.4 kg

Disclaimer

感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。感谢您(以下称“本服务”)。在使用本服务前，请您务必仔细阅读并透彻理解本声明。一旦您开始使用本服务，您的使用行为将被视为对本声明全部内容的认可。

I understand and acknowledge the contents of the above statement。

	dLSP 510	dLSP 520	dLSP 540	dLSP 5A0	dLSP 510 Pro	dLSP 520 Pro
Work mode	Infusion only, withdrawal only, infusion/withdrawal, withdrawal/infusion, auto repeated, programming (on PC software)
Number of channel	1	2	4	10	1	2
Pusher advance per microstep	0.03255μm/ustep				0.015625μm/μstep
Linear speed	0.0833μm/min-180mm/min				0.04μm/min-86.4mm/min
Step speed	23.4375 sec/ustep-10.85 μsec/μstep
Linear travel accuracy (Rated)	±0.5%				±0.35%
Linear travel CV(Rated)	±0.05%
Linear force (Rated)	Rated thrust 40lbs/18kg adjustable thrust
Motor and drive	1.8'' step motor with 1/64 microstepping
Syringe	0.5uL-60mL	0.5uL-30mL	0.5uL-20mL	0.5uL-10mL	0.5uL-60mL	0.5uL-30mL
User-defined syringe	Travel≤108mm, OD≤31.5mm	Travel≤108mm, OD≤31.5mm	Travel≤108mm, OD≤31.5mm	Travel≤108mm, OD≤31.5mm	Travel≤108mm, OD≤31.5mm	Travel≤108mm, OD≤31.5mm
Display	7-inch, 1024x600, IPS HD LCD
Language	Chinese or English, set as needed
Control mode	Touch screen control, dedicated PC or Android App control, footswitch control, RS485 communication control

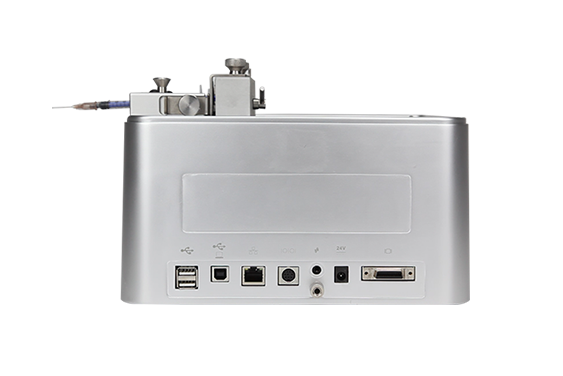

Interface	RS485(optional), USB-B, USB-A, Wifi, bluetooth, Ethernet, footswitch
	3outputs-solid state relay signal,2inputs-switch signal or TTL signal,4-20mA signal (optional)
Wireless connectivity(optional)	Wifi, bluetooth
Programming function	Parameter configured based on work flow: constant, ramp, loop, delay, repeat, l/O output trigger, I/O event input trigger,tooch screen trigger
Calibration	Improve flow rate/ dispensing volume precision and accuracy
Parameter method	Parameter methods can be stored and easily recalled
Real time clock	Date and time can be set
Audible alarm	For keypad clicks, end of run, near end of run, power on, motor stall, etc.
Voice reminder	For working progress, alarm, diagnosis
Intelligent diagnosis	N/A				For presence of syringes, syringe leakage
Screen lock	To prevent misoperation
User access control	Three levels of user accesses (administrator, developer, operator), in line with safety management requirement (21CFR Part 11)
Log record	Record the complete operation history of the pump, and can be exported directly
Electronic signature and audit trail	Meet the requirement of 21CFR Part 11 (on dedicated PC software)
Support 3Q(IQ/OQ/PQ)	Meet GMP requirement
EMC	CE (TUV) Certified
Dimension(LXWXH)	Drive unit: 260mmX185mmX180mm,Controller:190mmX123mmX33mm
Power supply	AC 100V-240V/30W 50/60Hz				AC 100V-240V/20W 50/60Hz
Operating condition	Temperature: 5℃-40℃,Relative humidity<85%
IP rating	IP31
Controller weight	0.4kg
Pump drive weight	3.5kg		3.7kg	4kg	3.5kg

Model		dLSP 510/dLSP 520/dLSP 540/dLSP 5A0	dLSP 510 Pro/dLSP 520 Pro
Syringe	Syringe ID (mm)	Flow Rate Reference (nL/min)	Flow Rate Reference (nL/min)
0.5ul	0.1	0.0007nL/min-0.0014mL/min	0.0003nL/min-0.0007mL/min
5ul	0.35	0.008nL/min-0.017mL/min	0.004nL/min-0.008mL/min
10ul	0.5	0.016nL/min-0.035mL/min	0.008nL/min-0.017mL/min
25ul	0.8	0.042nL/min-0.090mL/min	0.020nL/min-0.043mL/min
50ul	1.1	0.079nL/min-0.171mL/min	0.038nL/min-0.082mL/min
100ul	1.6	0.167nL/min-0.362mL/min	0.080nL/min-0.174mL/min
500ul	3.25	0.691nL/min-1.493mL/min	0.332nL/min-0.717mL/min
1ml	4.72	1.458nL/min-3.150mL/min	0.700nL/min-1.512mL/min
2ml	9	5.299nL/min-11.451mL/min	2.545nL/min-5.497mL/min
5ml	13.1	11.227nL/min-24.261mL/min	5.391nL/min-11.645mL/min
10ml	16.6	18.028nL/min-38.956mL/min	8.657nL/min-18.699mL/min
20ml	19	23.618nL/min-51.035mL/min	11.341nL/min-24.497mL/min
30ml	23	34.609nL/min-74.786mL/min	16.619nL/min-35.897mL/min
60ml(510 Series)	29.14	55.554nL/min-120.044mL/min	26.677nL/min-57.621mL/min
