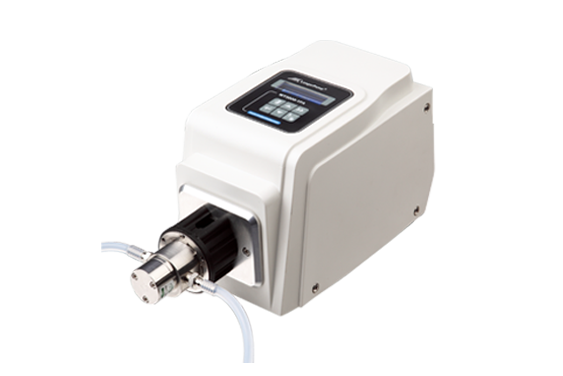

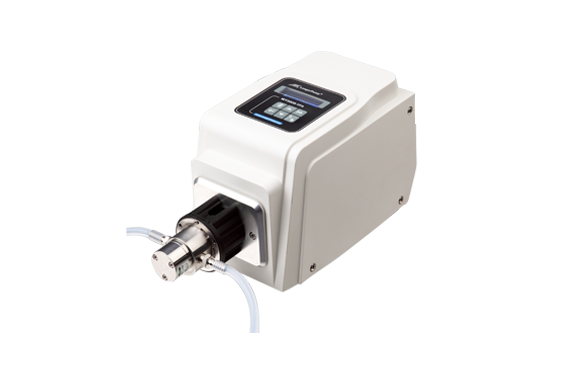

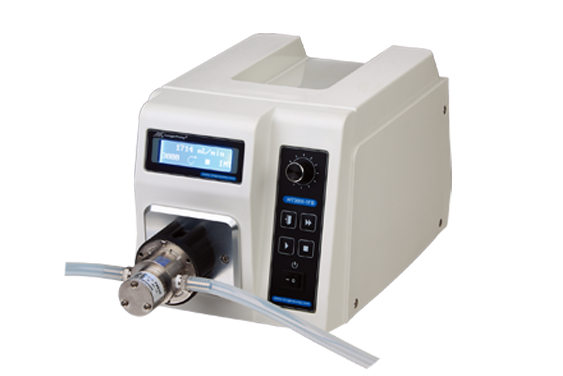

WT3000-1FB Magnet Drive Gear Pump
WT3000-1FB micro gear pump has two kinds of work mode: flow mode and dispensing mode. It can provide 85.7－2571.4mL/min flow rate with flow rate working mode and dispense 0.1ml-999L volume with dispensing working mode. It can get high-precision flow rate and dispensing volume under high system pressure.
Product Enquiry
  • WT3000-1FB Magnet Drive Gear Pump
  • WT3000-1FB Magnet Drive Gear Pump
  • WT3000-1FB Magnet Drive Gear Pump
  • WT3000-1FB Magnet Drive Gear Pump
Product Introduction Parameter Details Data Download
Product Features

WT3000-1FB micro gear pump has two kinds of work mode: flow mode and dispensing mode.

It can provide 85.7－2571.4mL/min flow rate with flow mode and dispense 0.1ml-999L volume with dispensing mode.

It adopts DC brushless motor and 316 stainless steel pump head. Equipped with compact precision pump head, it has features of low noise, no pulsation, high efficiency and maintenance free.

Due to the mechanical structure, gear pump just works with fixed direction.

It can get high-precision flow rate and dispensing volume. The outlet pressure can reach up to 1.4Mpa..

Technical Parameters
Parameters WT3000-1JB
Flow Range 85.7-2571.4ml/min
Compatible Pump Head MG204; MG209; MG213
Gear Material PEEK; PTFE
Housing Material 316L stainless steel
Pressure Resistance ≤0.8 MPa (depending on pump head); ≤1.4 MPa (depending on pump head)
Rotation Speed Range 300 rpm–3000 rpm
Resolution 1 rpm
Display LCD screen display
Operating Mode continuous transmission; multiple distribution
Control Method button and rotary knob control; external signal control; communication control
External Control Function start/stop; speed
Communication Control RS485
Dimensions 290 × 207 × 180 mm
Power Supply AC 220 V ±20%/150 W 50/60 Hz or AC 110 V ±20%/150 W 50/60 Hz (optional)
Operating Temperature 0 °C–40 °C
Relative Humidity <80%
IP Rating IP31
Weight 5.1kg
Demonstration Video
Application Scenarios

Technical Specifications




WT3000-1FB-A

WT3000-1FB-B

Speed

300rpm-3000rpm

300rpm-3000rpm

Speed resolution

1rpm

1rpm

Dispensing volume

0.1mL-999L

0.1mL-999L

Copy number

0-9999,"0" means unlimited cycle

0-9999,"0"   means unlimited cycle

Pause time

1s-999hr, resolution is 0.1s

1s-999hr,   resolution is 0.1s

Calibration time

30s-1800s, resolution is 1s

30s-1800s,   resolution is 1s

Diameter of particle in liquid

≤10μm

≤10μm

Viscosity

≤200cSt

≤200cSt

Speed signal input

4-20mA,0.5-5V,1-10V,1-10kHz corresponding to   300rpm-3000rpm

4-20mA,0.5-5V,1-10V,1-10kHz corresponding to 300rpm-3000rpm

Start/Stop signal input

TTL signal

TTL signal

Speed output

1.25kHz-12.5kHz corresponding to 300rpm-3000rpm

1.25kHz-12.5kHz   corresponding to 300rpm-3000rpm

Start/Stop output

OC gate signal

OC gate signal

Communication interface

RS485

RS485

Dimension (LXWXH)

290X207X180(mm)

290X207X180(mm)

Power supply

AC 220V±20%/150W

 AC110V±20%/150W

Operating condition

0 to 40℃

0 to 40℃

Relative humidity

<80%

<80%

IP rating

IP31

IP31

Weight

5.1kg

5.1kg



Compatible Pump Heads and Tubing


Drive ModelPump   HeadGear   MaterialFlow   Rate (mL/min)Outlet   Pressure(Mpa)Liquid   Temperature (℃)Weight(kg)
WT3000-1FBMG204XD0PT00000PEEK85.7-857.1≤1.4-45~1205.39
MG209XD0PT00000PEEK171.4-1714.3≤0.9-45~1205.40
MG213XD0PT00000PEEK257.1-2571.4≤0.8-45~1205.42
