Speed

0-100rpm

0-300rpm

0-600rpm

Speed resolution

0.1rpm

1rpm

1rpm

* Direction control

Direction is controlled by external switch signal. CW when switch is open, CCW when switch is closed

* Start/stop control

Start/stop is controlled by external switch signal. Pump runs when switch is open, stops when switch is closed

* BCD dial switch speed

control

The speed is divided into 15 grades. BCD position 1-F corresponding to 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100(rpm)

The speed is divided into 15 grades. BCD position 1-F corresponding to 5, 10, 20, 40, 60, 80, 100, 125, 150, 175, 200, 225, 250, 275, 300(rpm)

The speed is divided into 30 grades: 5, 10, 20, 40, 60, 80, 100, 125, 150, 175, 200, 225, 250, 275, 300, 320, 340, 360, 380, 400, 420, 440, 460, 480, 500, 520, 540, 560, 580, 600 (rpm)

* External speed control

   signal (optional)

4-20mA, 0-5V, 0-10V, 0-10kHz

** Communication control

RS485 interface,compatible both with Longer OEM protocol and Modbus protocol

** Communication Pump ID

Pump ID range is 1-30

** Bit rate

1200bps or 9600bps

** Power-off memory

Return to previous status when powered on

Dimension(Lx Wx H)

180 x 102 x 136(mm)

185 x 125 x 136(mm)

Relative humidity

＜80%

Operating temperature

0℃-40℃

Power supply

DC24V/50W

DC24V/50W

DC24V/80W

Weight

1.43kg

1.63kg

T100-SV-10

T300-SV-10

T600-SV-10

Dial switch and external signal (0-10V)

T100-SA

T300-SA

T600-SA

Dial switch and external signal (4-20mA)

T100-SF

T300-SF

T600-SF

Dial switch and external signal (0-10kHz)

T100-SC

T300-SC

T600-SC

RS485 communication

T100-SV-05

T300-SV-05

T600-SV-05

Dial switch and external signal (0-5V)

T100 Series

T300 Series

T600 Series

YZ1515x, YZⅡ15

13^# 14^# 19^# 16^# 25^# 17^# 18^#

380

1140

2200

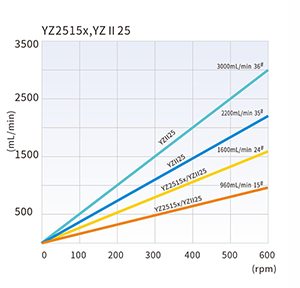

YZ2515x, YZⅡ25

15^# 24^#

270

840

1600

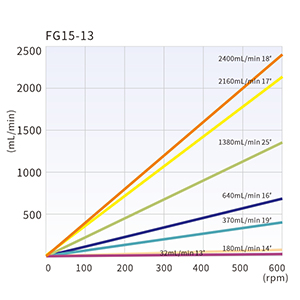

FG15-13

13^# 14^# 19^# 16^# 25^# 17^# 18^#

430

1200

2400

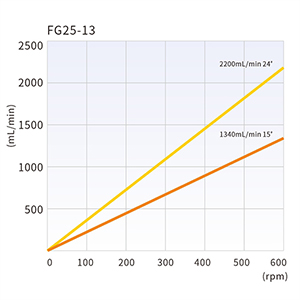

FG25-13

15^# 24^#

320

1100

2200

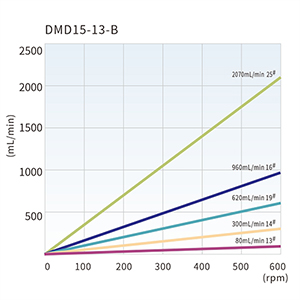

DMD15-13-B, DMD15-13-D

2×13^#  2×14^#  2×19^#  2×16^#  2×25^#

375

1040

2070

BZ15-13-A

14^#

22

80

150

BZ15-13-B

16^#

80

240

460

BZ15-13-C

25^#

150

470

960

BZ15-13-D

17^#

270

800

1600

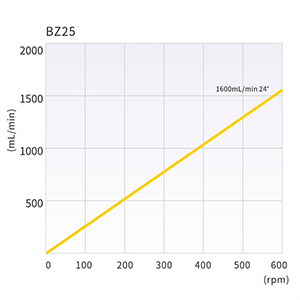

BZ25-13-B

24^#

250

800

1600

DG15-24

16^# 25^# 17^#

300 (Single Channel)

900 (Single Channel)

1800 (Single Channel)

DG15-28

13^#,14^#, ID≤3.17(mm),Wall thickness:1(mm)

75(Single Channel, speed≤100rpm)

DG-1(6), DG-2(6)

ID≤3.17(mm),Wall thickness:0.8-1(mm)

48(Single Channel, speed≤100rpm)

DG-1(10), DG-2(10)

ID≤3.17(mm),Wall thickness:0.8-1(mm)

32(Single Channel, speed≤100rpm)
