Compact size and structure, utilizing a NEMA 17 stepper motor with an integrated driver.
Control the pump through digital signals, analog signals and pulse signals.
The integrated pump head JY15-12-C features a transparent cover, allowing for easy monitoring of the pump operation status.
Parameters | |
Motor type | Stepper Motor |
Control circuit board | Yes |
Max. flow rate(Single Channel) | 170mL/min |
Pumphead model | JY15-12-C (included) |
Pump speed | ≤100rpm |
Control mode | DIP switch,4-20mA,0-5V,0-10V,0-10kHz |
Control feature | Pump speed,start/stop,direction |
Dimensions(L x W x H) | 110x60x61mm |
Installation method | Panel mount |
Power supply | DC24V/8W |
Operating temperature | 0℃-40℃ |
Relative humidity | <80% |
Weight | 0.54kg |
Technical Specifications
T100-SE01&BPH01 T100-SE01-02 T100-SE01&WX10-14-H T100-SE01&JY15-12-C | T400-SE01&BPH01 T400-SE01-02 | |
Pump Speed | 0-100rpm | 0-400rpm |
Speed resolution | 0.1rpm | 1rpm |
Running direction control | Pump running direction is controlled by a switch signal (dry contact signal). The trigger mode can be configured via communication commands to either level trigger or pulse trigger. Factory default setting: level trigger mode, contact open for clockwise, contact closed for counterclockwise. | |
Start/stop control | Start/stop is controlled by a switch signal (dry contact signal). The trigger mode can be configured via communication commands to either level trigger or pulse trigger. Factory default setting: level trigger mode, contact open for start, contact closed for stop. | |
DIP switch setting for pump speed | The DIP switch can set the pump speed to 0-100rpm, and each DIP position corresponds to a step of 5rpm. | The DIP switch can set the pump speed to 0-400rpm, and each DIP position corresponds to a step of 20rpm. |
External signals for pump speed | The pump speed will be proportional to the external speed signal: 4-20mA, 0-5V, 0-10V, 0-10kHz. The relationship between the signal range and speed range can be configured through communication commands. | |
Output | DC5V 10mA | |
Power supply | DC24V/8W | DC24V/12W |
Dimensions(L*W*H) | With BPH01 pump head:117x64x63mm With KZ10/KZ15 pump head:110x60x69mm With WX10-14 pump head:94x59x67.5mm With JY15-12 pump head: 116x60x61mm | |
Mounting method | Panel mount | |
Working condition | Temperature: 0℃-40℃, relative humidity<80% | |
Weight | With WX10-14 pump head: 0.47kg; With BPH01/JY15/KZ10/KZ15 pump head: 0.54kg |
Compatible Pump Head and Tubing
Pump Drive | Max Speed | Pump Head | Tubings | Max Flow Rate(mL/min) |
T100-SE01-02 | 100rpm | KZ10 | ID≤3.17mm,W.T. : 0.86mm | 23 |
KZ15 | 13#,14#,19#,16# | 42 | ||
T400-SE01-02 | 400rpm | KZ10 | ID≤3.17mm,W.T. : 0.86mm | 92 |
KZ15 | 13#,14#,19#,16# | 168 | ||
T100-SE01&BPH01 | 100rpm | BPH01(Included) | 13#,14#,19#,16#,25# | 82 |
T400-SE01&BPH01 | 400rpm | BPH01(Included) | 13#,14#,19#,16#,25# | 340 |
T100-SE01&WX10-14-H | 100rpm | WX10-14-H (Included) | ID≤3.17mm,W.T. : 0.8-1mm | 40 |
T100-SE01&JY15-12-C | 100rpm | JY15-12-C(Included) | 25#, 17# | 170 |
Dimensions

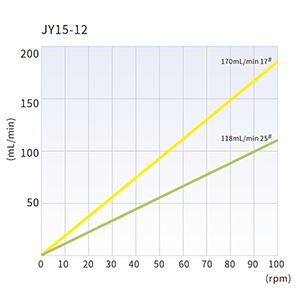

Flow Curve
