90-1 Series Fixed Speed OEM Peristaltic Pumps
90-1 series OEM pump is designed for customer's equipment and instrument. It adopts 90 series DC or AC motor. It is fixed speed pump with simple structure. Panel installation and soleplate installation are available.
Product Enquiry
  • 90-1 Series Fixed Speed OEM Peristaltic Pumps
  • 90-1 Series Fixed Speed OEM Peristaltic Pumps
  • 90-1 Series Fixed Speed OEM Peristaltic Pumps
  • 90-1 Series Fixed Speed OEM Peristaltic Pumps
Product Introduction Parameter Details Data Download
Product Features

90-1 series OEM pump is designed for customer's equipment and instrument.

Adopts 90 series DC or AC motor with fixed speed and simple structure.

Panel installation and soleplate installation are available.

Accept KZ25 pump head.

Technical Parameters
Parameters 90-1 series
Motor type 90 gear motor
Control circuit board No
Max. flow rate (Single Channel) ≤5000ml/min
Pump head model No(Need to purchase separately)
Pump speed Fixed speed
Control mode No
Control feature No
Dimensions (L x W x H) Soleplate installation: 269×130×123(mm) Panel installation269×130×145(mm)
Installation method Panel installation as standard. Soleplate installation can be customized.
Power supply DC 12V/90W or DC 24V/90W AC 220V/90W
Operating temperature 0℃-40℃
Relative humidity ＜80%
Weight No

Technical Specifications


ModelInstallation ModeProduct CodeSpeed
(rpm)		MotorPower Supply

Speed

Tolerance

Motor Life
G200-D5Soleplate Panel05.51.41120090 DC gear motor
    		DC 12V/90W≤±10%2000 hours
G200-D6Panel05.51.412200
G240-D5Soleplate Panel05.51.421240
G240-D6Panel05.51.422240
G333-D5Soleplate Panel05.51.521333
G333-D6Panel05.51.522333
G500-D5Soleplate Panel05.51.711500
G500-D6Panel05.51.712500
G200-D105Soleplate Panel05.53.411200DC24V/90W
G200-D106Panel05.53.412200
G240-D105Soleplate Panel05.53.421240
G240-D106Panel05.53.422240
G333-D105Soleplate Panel05.53.521333
G333-D106Panel05.53.522333
G500-D105Soleplate Panel05.53.721500
G500-D106Panel05.53.722500
G208-A5Soleplate Panel05.55.42120890 AC gear motorAC 220V/90W5000 hours
G208-A6Panel05.55.422208
G250-A5Soleplate Panel05.55.431250
G250-A6Panel05.55.432250
G347-A5Soleplate Panel05.55.521347
G347-A6Panel05.55.522347
G417-A5Soleplate Panel05.55.611417
G417-A6Panel05.55.612417


Power SupplyDC12V,DC24VAC 220V
Speed(rpm)200240333500208250347
TubingFlow Rate(mL/min)
15#60072099915006247501041
24#1167140019432917121314582024
35#1667200027754167173320832892
36#2000240033305000208025003470

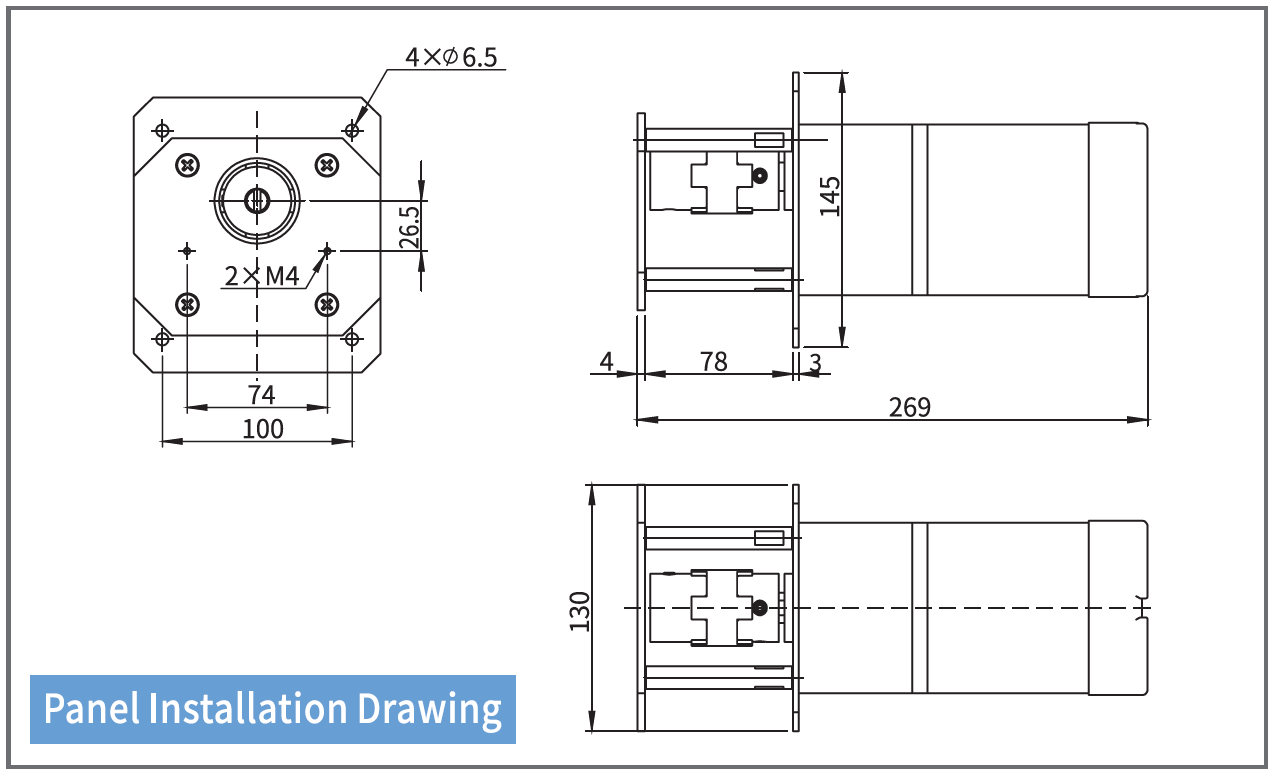

Dimensions
