60 series OEM pump is designed for customer's equipment and instrument.
Adopts 60 series DC or AC motor with fixed speed and simple structure.
Panel installation and soleplate installation are available.
Accept various pump heads.
Customers can choose proper speed, motor and pump head according to the specific requirements.
Parameters | 60 Series |
Motor type | 60 gear motor |
Control circuit board | No |
Max. flow rate (Single Channel) | ≤702ml/min |
Pump head model | No (purchased separately) |
Pump speed | Fixed speed |
Control mode | No |
Control feature | No |
Dimensions (L x W x H) | Soleplate installation: 162×80×110(mm); Panel installation: 162×110×100(mm) |
Installation method | Panel installation as standard. Soleplate installation can be customized. |
Power supply | DC 12V/24W or DC 24V/24W AC 220V/33W |
Operating temperature | 0℃-40℃ |
Relative humidity | <80% |
Weight | N/A |
Technical Specifications
Model | Installation Mode | Product | Speed | Motor | Power Supply | Speed Tolerance | Motor Life |
G14-D1 | Soleplate Panel | 05.51.011 | 14 | 60 DC Gear Motor | DC 12V/24W | ≤±10% | 2000 hours |
G14-D2 | Panel | 05.51.012 | 14 | ||||
G28-D1 | Soleplate Panel | 05.51.031 | 28 | ||||
G28-D2 | Panel | 05.51.032 | 28 | ||||
G56-D1 | Soleplate Panel | 05.51.041 | 56 | ||||
G56-D2 | Panel | 05.51.042 | 56 | ||||
G93-D1 | Soleplate Panel | 05.51.051 | 93 | ||||
G93-D2 | Panel | 05.51.052 | 93 | ||||
G186-D1 | Soleplate Panel | 05.51.311 | 186 | ||||
G186-D2 | Panel | 05.51.312 | 186 | ||||
G15-D101 | Soleplate Panel | 05.53.011 | 15 | DC 24V/24W | |||
G15-D102 | Panel | 05.53.012 | 15 | ||||
G30-D101 | Soleplate Panel | 05.53.021 | 30 | ||||
G30-D102 | Panel | 05.53.022 | 30 | ||||
G59-D101 | Soleplate Panel | 05.53.031 | 59 | ||||
G59-D102 | Panel | 05.53.032 | 59 | ||||
G99-D101 | Soleplate Panel | 05.53.041 | 99 | ||||
G99-D102 | Panel | 05.53.042 | 99 | ||||
G196-D101 | Soleplate Panel | 05.53.311 | 196 | ||||
G196-D102 | Panel | 05.53.312 | 196 | ||||
G15-A1 | Soleplate Panel | 05.55.011 | 15 | 60 AC Gear Motor | AC 220V/33W | 5000 hours | |
G15-A2 | Panel | 05.55.012 | 15 | ||||
G30-A1 | Soleplate Panel | 05.55.021 | 30 | ||||
G30-A2 | Panel | 05.55.022 | 30 | ||||
G60-A1 | Soleplate Panel | 05.55.071 | 60 | ||||
G60-A2 | Panel | 05.55.072 | 60 | ||||
G88-A1 | Soleplate Panel | 05.55.041 | 88 | ||||
G88-A2 | Panel | 05.55.042 | 88 | ||||
G147-A1 | Soleplate Panel | 05.55.311 | 147 | ||||
G147-A2 | Panel | 05.55.312 | 147 |
Compatible Pump Head and Tubing

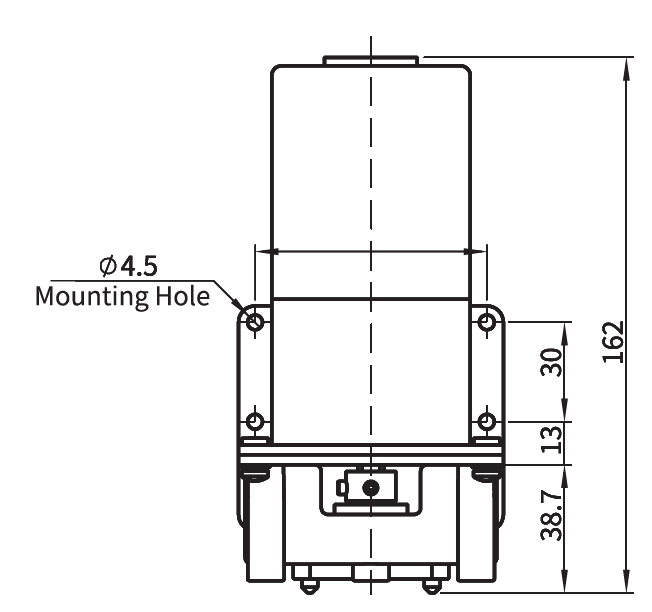

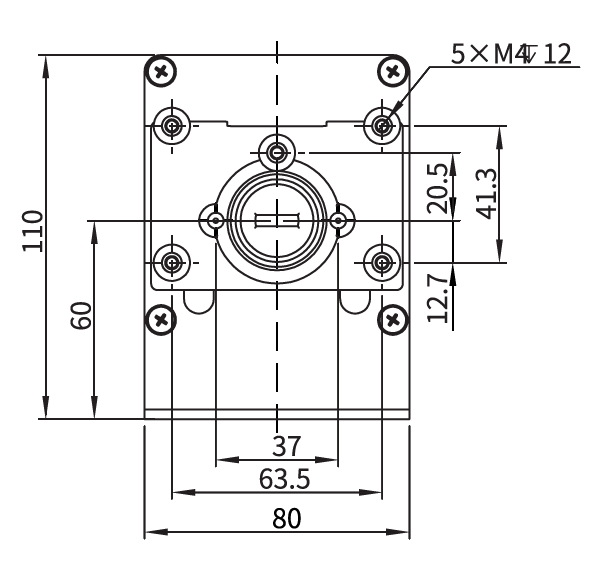

Dimension
