Mainly used in OEM equipment and instruments
MSP1-E1 OEM Syringe Pump
MSP1-E1 can be precisely controlled by upper computer, is ideal for automation applications. The materials of syringe, valve and tube connector provide excellent chemical property for users.
Product Enquiry
  • MSP1-E1 OEM Syringe Pump
  • MSP1-E1 OEM Syringe Pump
  • MSP1-E1 OEM Syringe Pump
  • MSP1-E1 OEM Syringe Pump
Product Introduction Parameter Details Data Download
Product Features

Mainly used in OEM equipment and instruments, especially for automation process of programmed task.

Rotary valve, panel installation, RS485/RS232/CAN bus communication control.

Technical Parameters
Parameters MSP1-E1
Channel 1
Syringe size 500μL、1mL、2.5mL、5mL
Accuracy ≤1.0 % (rated stroke)
Precision Repeatability≤0.5%(rated stroke)
Valve options 3-way solenoid valve
Wetted material Borosilicate glass，PTFE，PEEK
Syringe fitting 1/4"-28 thread
Max pressure 0.1Mpa
Travel 30mm
Time for full stroke 2s-60s
Full stroke 1000 steps
Resolution 0.03mm(1 step)
Communication interface RS485，RS232
Protocol Data terminal，OEM protocol(serial)
Dimensions (L x W x H) 100×65×127(mm)
Power supply DC 24V，1.5A
Operating temperature 15℃～40℃
Relative humidity ＜80% RH，no condensation
Weight 0.9kg
Demonstration Video

  • Longer Pump Industrial Syringe Pump MSP1-CX Valve & Syringe Installation

  • Longer Pump Industrial Syringe Pump MSP1-CX Valve & Syringe Installation
Application Scenarios

Technical Specifications



MSP1-D1

MSP1-E1

Accuracy

 ≤1%(rated stroke)

Precision

Repeatability≤0.5%(rated stroke)

Rated stroke (steps)

30mm（1000 steps）

Linear speed

0.5mm/s-15mm/s

Time for rated stroke

2s-60s

Control resolution

0.03mm(1 steps)

Transmission mechanism

Rack and pinion drive

Plunger drive force (max.)

≥68N

Secondary plunger drive force (max.)

 ≥34N

-

Syringe

500µL, 1mL, 2.5mL, 5mL

Valve

3 port 120°

3-way solenoid valve

Valve plug turn time

≤280ms between adjacent ports

≤100ms

Wetted material

Borosilicate glass, PTFE, PCTFE

Borosilicate glass, PTFE, PEEK

Max. pressure

0.68Mpa

0.1Mpa

Tubing fitting

1/4"-28 thread

Syringe fitting

1/4"-28 thread

Signal input

1 input signals (TTL signal, drive current > 16mA)

Signal output

1 output signals (OC gate signal) to indicate the working status

Communication interface

 RS485 or RS232

Bit rate

  9600bps or 38400bps

Pump ID setting

Set the pump ID through BCD dial switch (0 to E corresponding to pump address 1-15)

Pump parameters setting

Set the parameters through DIP switch

Dimension (L×W×H)

100×65×127(mm)

Power supply

DC 24V/1.5A

Operating temperature

15℃-40℃

Relative humidity

＜80%

Weight

0.9kg

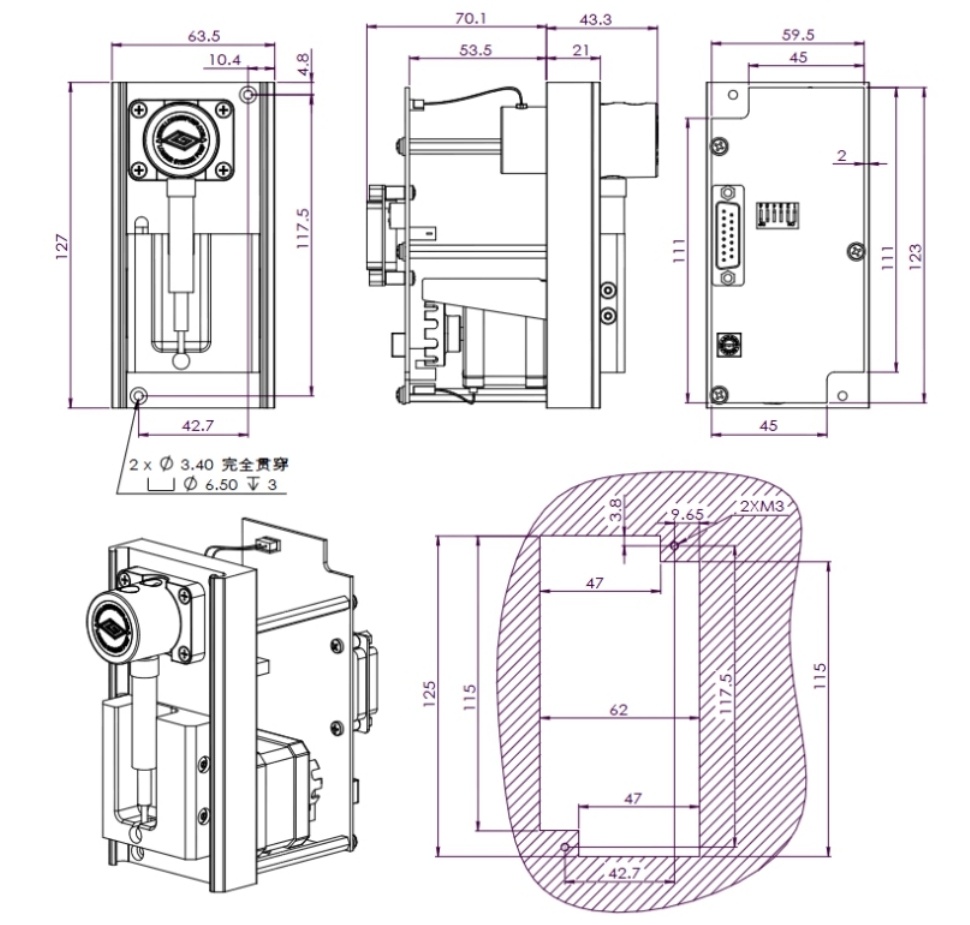

Dimensions
