适用注射器尺寸规格:50uL、100uL、250uL、500uL、1mL、2.5mL、5mL
满行程:60mm(1000步)
控制分辨率:0.06mm(1步)
适用阀:两口直通阀及外接24VDC,200mA以下规格电磁阀
流体接触的材料:硅酸盐玻璃,Kel-F、Teflon、PPS、氟橡胶
通讯接口:RS-232/RS-485
活塞速度:0.03mm/s-24mm/s
单路24V直流电源供电
Parameters | |
液量准确度 | 误差≤1%(额定行程时) |
液量精确度 | 重复性误差≤0.5%(额定行程时) |
额定行程(控制步数) | 30mm(1000步) |
线速度范围 | 0.5-15 (mm/s) |
额定行程运行时间范围 | 2-60(s) |
控制分辨率 | 0.03mm(1步) |
传动结构 | 齿轮齿条传动 |
活塞最大驱动力 | ≥68N |
管路接口 | 1/4"-28内螺纹接口 |
注射器接口 | 1/4"-28内螺纹接口 |
外形尺寸(长*宽*高) | 100x65x127(mm) |
适用电源 | DC 24V/1.5A |
重量 | 0.9kg |
工作环境相对湿度 | <80% |
详细参数

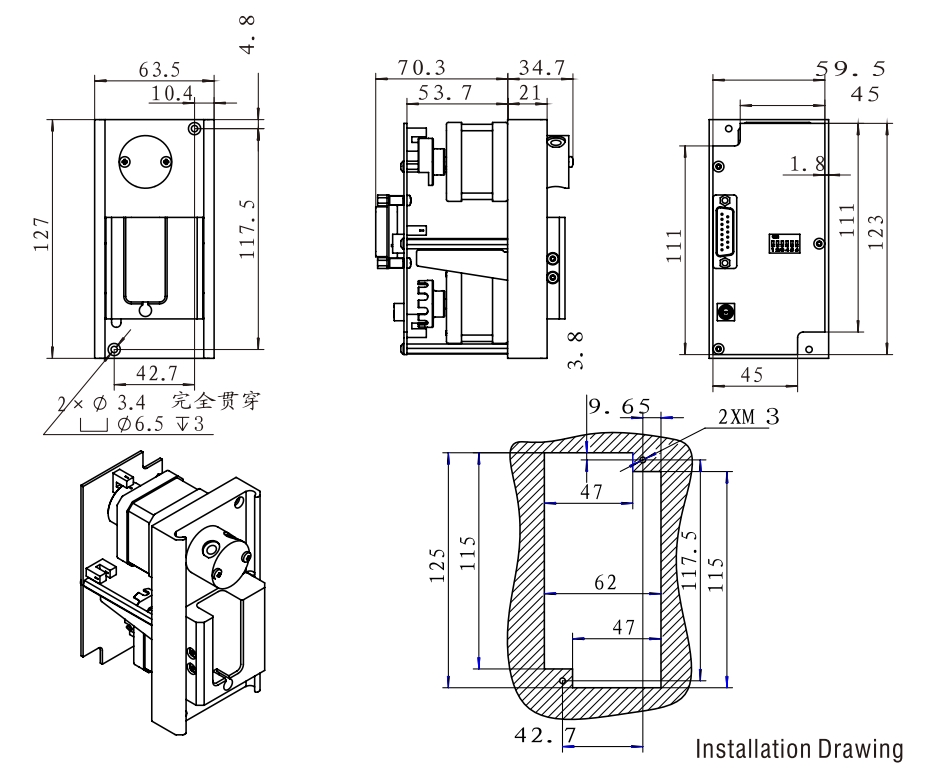

外形尺寸
