适用注射器尺寸规格:50uL-5mL
行程控制准确度:<1%(满行程)
行程控制精度:≤±5%(满行程)
满行程:30mm(3000步)
控制分辨率:0.01mm(1步)
适用阀:3口Y型阀,T型阀,3口分配阀,4口阀,直通阀及多口分配阀
流体接触的材料:硼硅酸盐玻璃,PTFE,PCTFE
通讯接口:RS-232/RS-485/CAN
单程时间:1.26s-20min
滚珠丝杠驱动活塞,编码器失步监测
Parameters | |
液量准确度 | 误差≤1%(1ml注射器及以上) |
液量精确度 | 重复性误差≤0.05%(全行程,1mL注射器及以上) |
额定行程(控制步数) | 30mm |
额定行程运行时间范围 | 1.26s-1200s |
传动结构 | 滚珠丝杠传动 |
管路接口 | 1/4"-28内螺纹接口 |
注射器接口 | 1/4"-28内螺纹接口 |
外形尺寸(长*宽*高) | 110mm(L)x44.4mm(w)x127mm(H) |
适用电源 | DC24V,峰值1.5A |
重量 | 1.0kg |
详细参数

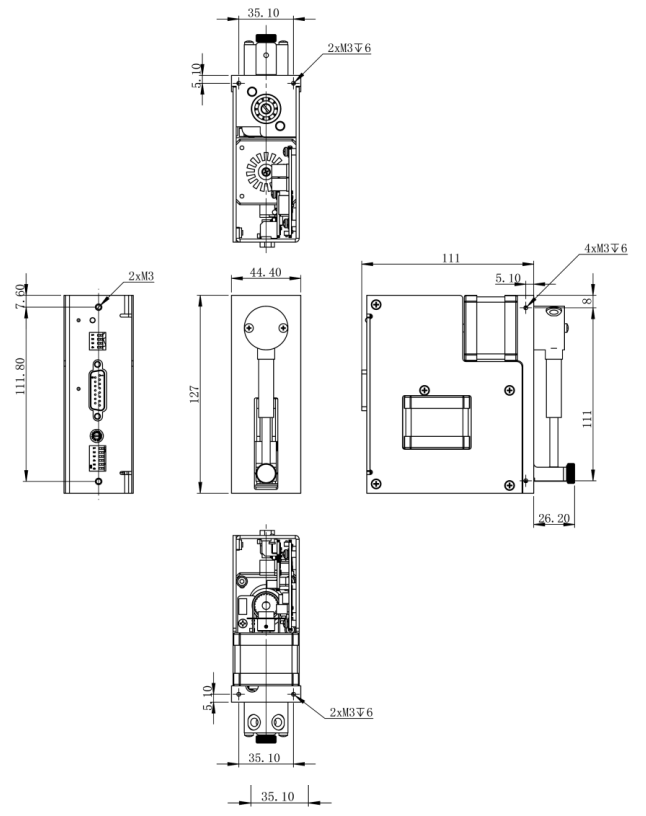

外形尺寸
