dPOFLEX PFH01 High Precision Peristaltic Pump Head
dPOFLEX® PFH01 pump head is designed for precision filling of micro-volume as low as 30ul with accuracy better than +/-1%. Phase compensation structure achieves lower pulsation and higher filling precision. Anodized aluminum housing is good for corrosion protection. It can be used independently as a small benchtop filling system, or integrated into semi-automatic systems or fully automated systems. The max flow rate is 159ml/min.
Product Enquiry
  • dPOFLEX PFH01 High Precision Peristaltic Pump Head
  • dPOFLEX PFH01 High Precision Peristaltic Pump Head
  • dPOFLEX PFH01 High Precision Peristaltic Pump Head
  • dPOFLEX PFH01 High Precision Peristaltic Pump Head
Product Introduction Parameter Details Data Download
Product Features

Compact structure.

Anodized aluminum housing is good for corrosion protection.

Precise filling of micro-volumes as low as 30μL with accuracy better than +/-1%.

Phase compensation structure for lower pulsation and higher filling precision.

Can be integrated into semi-automatic systems or fully automated systems.

The max flow rate is 159mL/min.

Technical Parameters
Parameters dPOFLEX® PFH01
Max. flow rate(Single Channel) 159ml/min
Speed ≤350rpm
Tubing options ID: 0.5-3.2mm; PFH01-05G; PFH01-08G; PFH01-12G; PFH01-16G; PFH01-24G; PFH01-32G
Number of channels 1
Number of rollers 12
Housing material Anodized aluminum
Roller material Stainless Steel
Stackable No
Weight 0.51kg
Demonstration Video

Technical Specifications


Model

 Speed

(rpm)

  Tubing ID

(mm)

 Max Flow Rate

(mL/min)

Recommend Filling Volume

(Accuracy≤±1%)

Max Filling Volume

per Second

Recommended

Filling Nozzle ID (mm)

PFH01

≤350

0.5

7

30μL

118μL

0.3 or 0.6

0.8

17

42μL

269μL

0.6

1.2

34

90μL

534μL

1

1.6

63

132μL

987μL

1 or 1.6

2.4

104

400μL

1.6mL

1.6

3.6

159

760μL

2.47mL

1.6 or 3.2

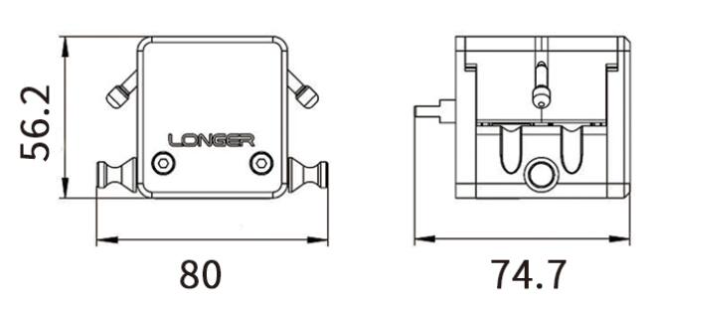

Dimension Diagram


PFH01 尺寸图.png



Flow Curve


PFU 灌装曲线.jpgPFU 灌装时间.jpg
