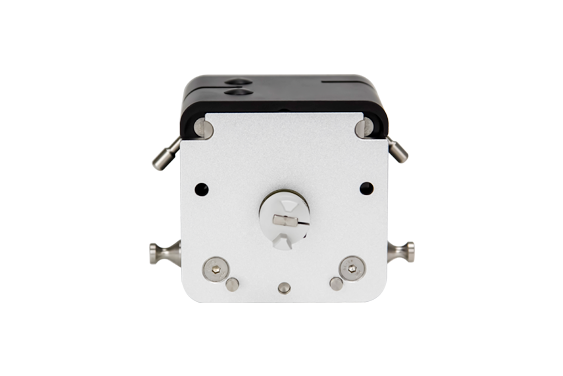

dPOFLEX® PFH02 High Precision Peristaltic Pump Head
dPOFLEX® PFH02 pump head is designed for precision filling of medium-volume with accuracy better than +/-1%. Phase compensation structure achieves lower pulsation and higher filling precision. Anodized aluminum housing is good for corrosion protection. It can be used independently as a small benchtop filling system, or integrated into semi-automatic systems or fully automated systems. The max flow rate is 1178ml/min.
Product Enquiry
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
  • dPOFLEX® PFH02 High Precision Peristaltic Pump Head
Product Introduction Parameter Details Data Download
Product Features

Compact structure and nice appearance.

Anodized aluminum housing is good for corrosion protection.

Precise filling of medium-volume with accuracy better than +/-1%.

Phase compensation structure for lower pulsation and higher filling precision.

Can be integrated into semi-automatic systems or fully automated systems.

The max flow rate is 1178mL/min.

Technical Parameters
Parameters dPOFLEX® PFH02
Max. flow rate(Single Channel) 1178ml/min
Speed ≤450rpm
Tubing options ID: 0.6-4.8(mm); PFH02-06G; PFH02-08G; PFH02-12G; PFH02-16G; PFH02-24G; PFH02-32G; PFH02-48G
Number of channels 1
Number of rollers 8
Housing material Anodized aluminum
Roller material Stainless Steel
Stackable No
Weight 1.26kg
Demonstration Video

Technical Specifications


Model

 Speed

(rpm)

Tubing ID

(mm)

Max Flow Rate

(mL/min)

Recommend Filling Volume

(Accuracy≤±1%)

Max Filling Volume

per Second

Recommended Filling Nozzle ID

(mm)

PFH02

≤450

0.6

27

0.2mL

0.42mL

0.6

0.8

66

0.4mL

1.03mL

0.6

1.2

114

0.5mL

1.78mL

1

1.6

147

0.8mL

2.29mL

1 or 1.6

2.4

371

1.16mL

5.77mL

1.6

3.2

566

2.15mL

8.80mL

1.6 or 3.2

4.8

1178

3mL

18.28mL

3.2 or 4.5





Dimension




Flow Curve


PFU 灌装曲线.jpgPFU 灌装时间.jpg
