dPOFLEX® GPH Large-Flow Peristaltic Pump Head
dPOFLEX® GPH large-flow pump head is designed for industrial applications with die-cast aluminum housing and 304sst rollers. Continuous tubing and tubing fitting are available for different applications. It can be equipped with tubing leak sensor. The pump head is designed with open head sensor for protecting operator safety. The max flow rate is 17L/min.
Product Enquiry
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
  • dPOFLEX® GPH Large-Flow Peristaltic Pump Head
Product Introduction Parameter Details Data Download
Product Features

Designed for industrial applications.

Die-cast aluminum housing and 304sst rollers.

Continuous tubing and tubing fitting are available for different applications.

Can be equipped with tubing leak sensor.

Designed with open head sensor for protecting operator safety.

The max flow rate is 17L/min.

Technical Parameters
Parameters dPOFLEX® GPH
Max. flow rate(Single Channel) 17L/min
Speed ≤265rpm
Tubing options 26#(6.4*3.3) 73#(9.5*3.3) 82#(12.7*3.3) 184#(15.9*3.3) 186#(12*4) 188#(17*4) 186#(12*4) 188#(17*4)
Number of channels 1
Number of rollers 2 or 4
Housing material Cast aluminum
Roller material 304sst
Stackable No
Weight 4.0-4.7Kg
Demonstration Video

  • Installation of GPH pump head of Longer Pump dPOFLEX GP01 industrial peristaltic pump

  • Longer Pump Installation of hose assemblies for GPH pump head of dPOFLEX BP01 industrial peristaltic

  • Installation of GPH pump head of Longer Pump dPOFLEX GP01 industrial peristaltic pump
  • Longer Pump Installation of hose assemblies for GPH pump head of dPOFLEX BP01 industrial peristaltic

Technical Specifications

Model

Number of

Rollers

Roller Materials

Housing

 Materials

Speed (rpm)

Tubing ID*Wall Thickness (mm)

Max Flow Rate (L/min)

Weight (Kg)

GPH01

2

304sst

Cast aluminum

≤265rpm

26#(6.4*3.3)

3.0

4.1

26#(6.4*3.3)

6.0

82#(12.7*3.3)

10.5

184#(15.9*3.3)

15.0

GPH02

2

186#(12*4)

9.5

4

188#(17*4)

17.0

GPH03

4

186#(12*4)

8.5

4.7

188#(17*4)

14.0

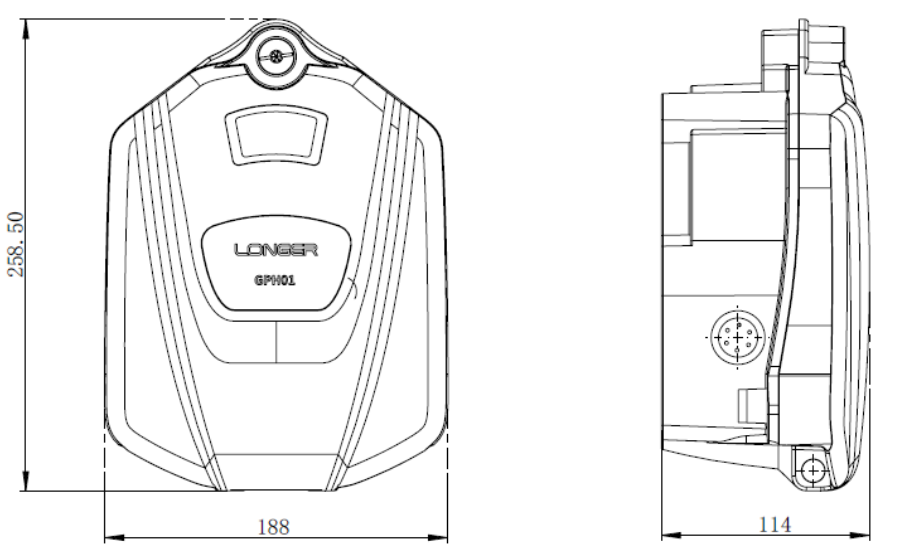

Dimension



GPH01 尺寸.png

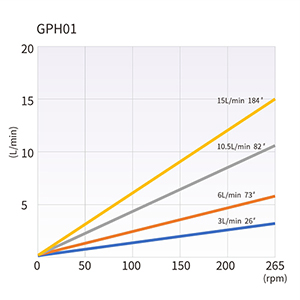

Flow Curve
