The max flow rate is 2200mL/min.
YZII15 Peristaltic Pump Head
YZII15 pump head is designed with linkage setting for easier tubing loading and changing. It accepts various tubing sizes to realize large flow rate range. The max flow rate is 2200mL/min.
Product Enquiry
  • YZII15 Peristaltic Pump Head
  • YZII15 Peristaltic Pump Head
  • YZII15 Peristaltic Pump Head
  • YZII15 Peristaltic Pump Head
  • YZII15 Peristaltic Pump Head
  • YZII15 Peristaltic Pump Head
Product Introduction Parameter Details Data Download
Product Features

Linkage setting to easier tubing loading and changing.

Accept various tubing sizes to realize large flow rate range.

Integrated stainless steel rotor to assure stable performance and good chemical resistance.

The max flow rate is 2200mL/min.

Technical Parameters
Parameters YZII15
Max. flow rate(Single Channel) 2200mL/min
Speed ≤600rpm
Tubing options 13# 14# 19# 16# 25# 17# 18#
Number of channels 1
Number of rollers 3
Housing material PESU
Roller material Stainless Steel
Stackable yes
Weight 0.35kg
Demonstration Video

  • How to Load Longer Pump Peristaltic Pump Head YZII15

  • How to Load Longer Pump Peristaltic Pump Head YZ1515X

  • Longer Pump YZ1515x Peristaltic Pump Head Rotor Assembly Demo

  • Longer Pump How to Load Pump Head YZ1515X L100-1FS

  • How to Load Longer Pump Peristaltic Pump Head YZII15
  • How to Load Longer Pump Peristaltic Pump Head YZ1515X
  • Longer Pump YZ1515x Peristaltic Pump Head Rotor Assembly Demo
  • Longer Pump How to Load Pump Head YZ1515X L100-1FS

Technical Specifications

Model

Product Code

Roller Number

Roller Material

Housing Material

Speed(rpm)

Tubing

Max. Flow Rate (mL/min)

Weight(kg)

YZ1515x-A

05.01.52A

3

Stainless
    steel

PESU

≤600

13#14#19#16#     25#17#18#

2200

0.4

YZ1515x-B

05.01.52B

6

1450

YZ1515x-C

05.01.52C

3

PPS

2200

YZ1515x-D

05.01.52D

6

1450

YZ2515x-A

05.01.53A

3

PESU

15#24#

1600

YZ2515x-C

05.01.53C

PPS

YZII15

05.01.55A

3

Stainless
    steel

PESU

≤600

13#14#19#16#
    25#17#18#

2200

0.35

YZII25

05.01.56A

15#24#35#36#

3000

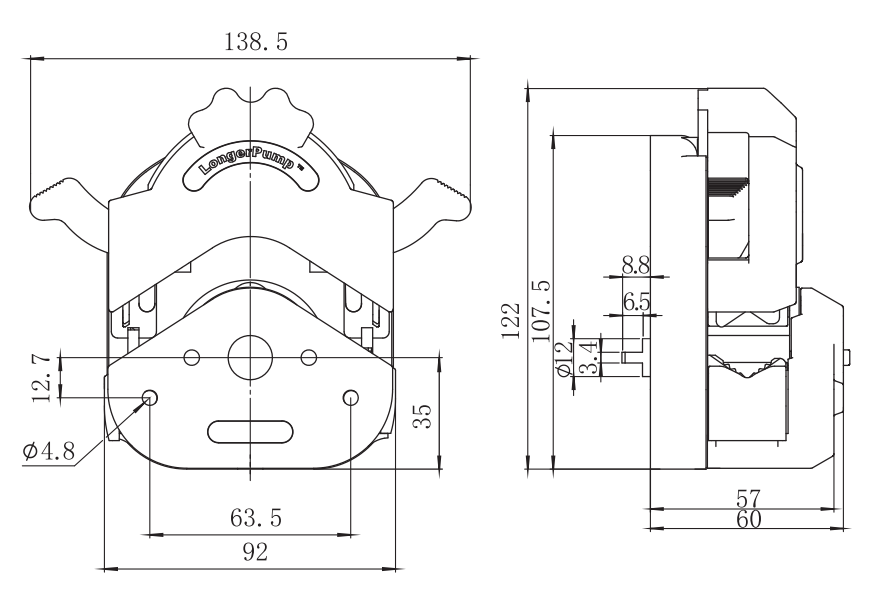

Appearance Dimension Diagram





Flow Curve
