KZ15 OEM Peristaltic Pump Head
KZ15 pump head is an OEM pump head with small size and compact structure. With flexible compression block, it is easy to load and change tubing with single hand. It can be driven by stepper motor, DC motor or AC motor. The pump head has good chemical resistance. Up to four heads can be stacked for OEM applications. The max flow rate is 190ml/min.
Product Enquiry
  • KZ15 OEM Peristaltic Pump Head
  • KZ15 OEM Peristaltic Pump Head
  • KZ15 OEM Peristaltic Pump Head
  • KZ15 OEM Peristaltic Pump Head
Product Introduction Parameter Details Data Download
Product Features

Small size and compact structure.

Flexible compression block for easy tubing loading and changing.

Can be driven by stepper motor, DC motor or AC motor.

Up to four heads can be stacked for OEM applications.

The max flow rate is 190ml/min.

Technical Parameters
Parameters KZ15
Max. flow rate(Single Channel) 190mL/min
Speed ≤450rpm
Tubing options 13#，14#，19#，16#
Number of channels 1
Number of rollers 4
Housing material POM or PVDF
Roller material POM or PVDF
Stackable Yes
Weight 0.1Kg
Demonstration Video

  • Loading 14# Tubing Assembly on KZ15 14 Pump Head

  • Loading Pharmed Tubing Kit on KZ10 24 A Pump Head

  • Loading 14# Tubing Assembly on KZ15 14 Pump Head
  • Loading Pharmed Tubing Kit on KZ10 24 A Pump Head

Technical Specifications

Model

Shaft

Channel

Rollers

Roller

Materials

Housing

Materials

Speed(rpm)

Tubing

Max Flow

Rate

(mL/min)

Weight(kg)

KZ10-24-A

Short

2

4

POM

POM

≤450

ID≤3.17mm

Wall: 0.86mm

104

0.1

KZ10-24-B

Long

KZ10-24-C

Short

PVDF

PVDF

KZ10-24-D

Long

KZ15-14-A

Short

1

POM

POM

190

13# 14#

19# 16#

KZ15-14-B

Long

KZ15-14-C

Short

PVDF

PVDF

KZ15-14-D

Long




Dimension

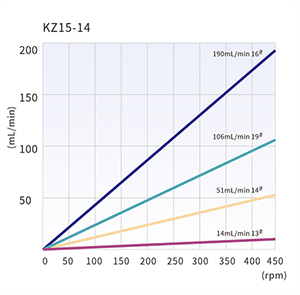

Flow Curve






  • Product Features
  • Technical Parameters
  • Demonstration Video
  • Application Scenarios
Product Comparison
